MSI MAG B850 Tomahawk MAX WiFi V1 Motherboard, ATX - Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-80A SPS VRM, DDR5 Memory Boost 8400+ MT/s (OC), PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

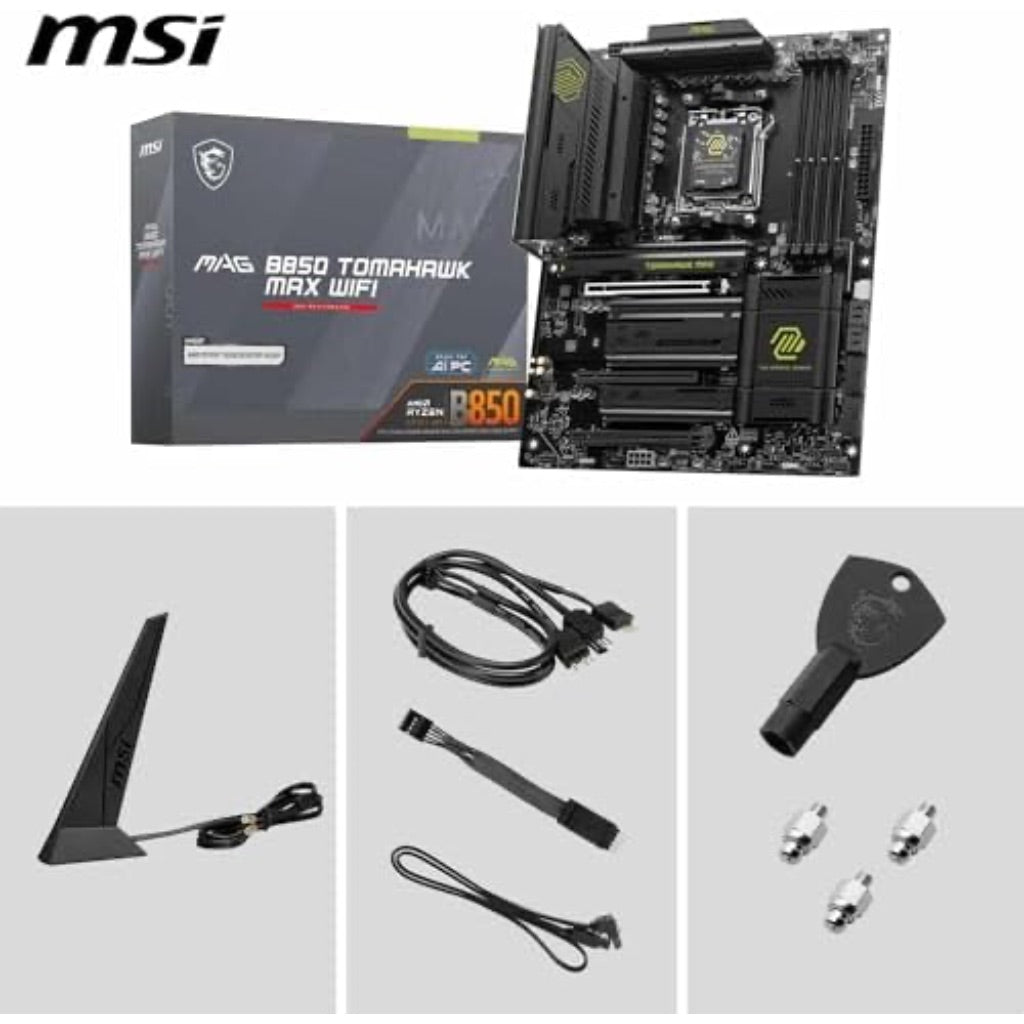

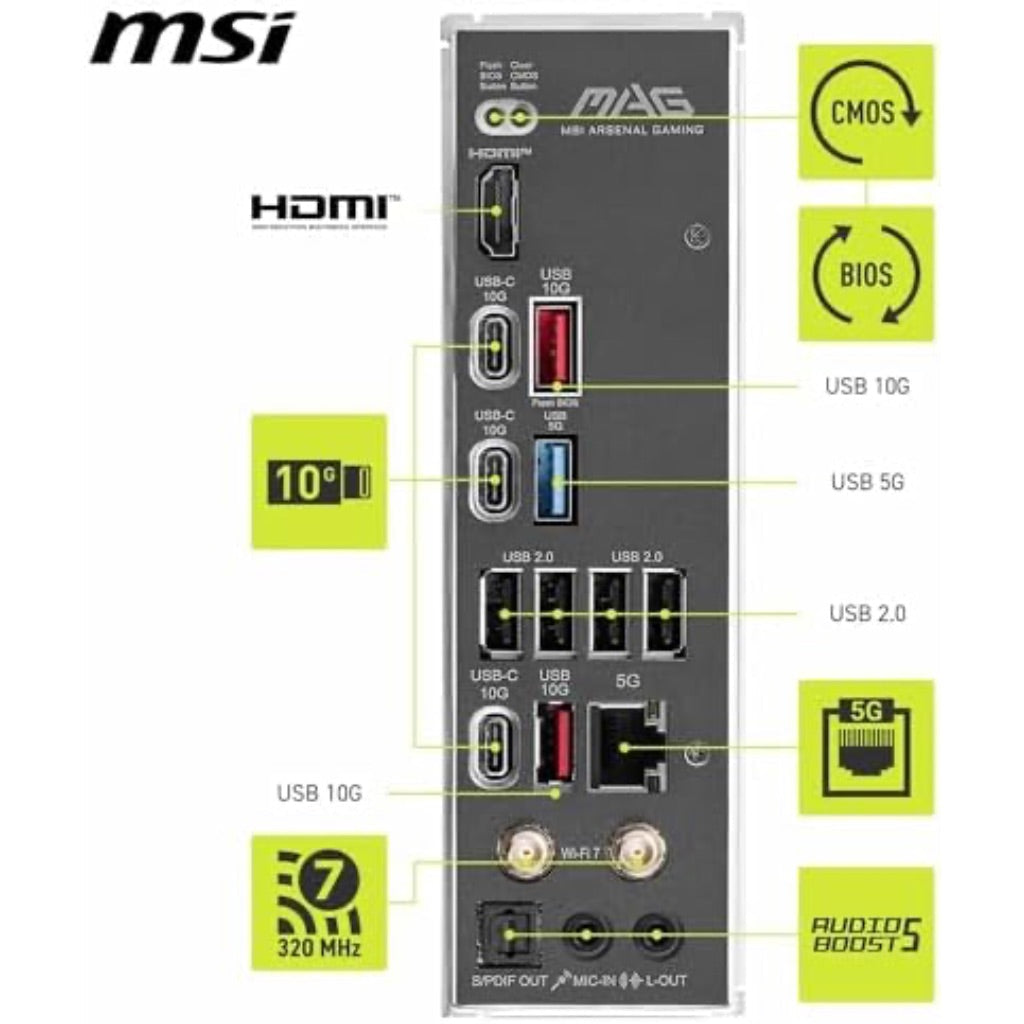

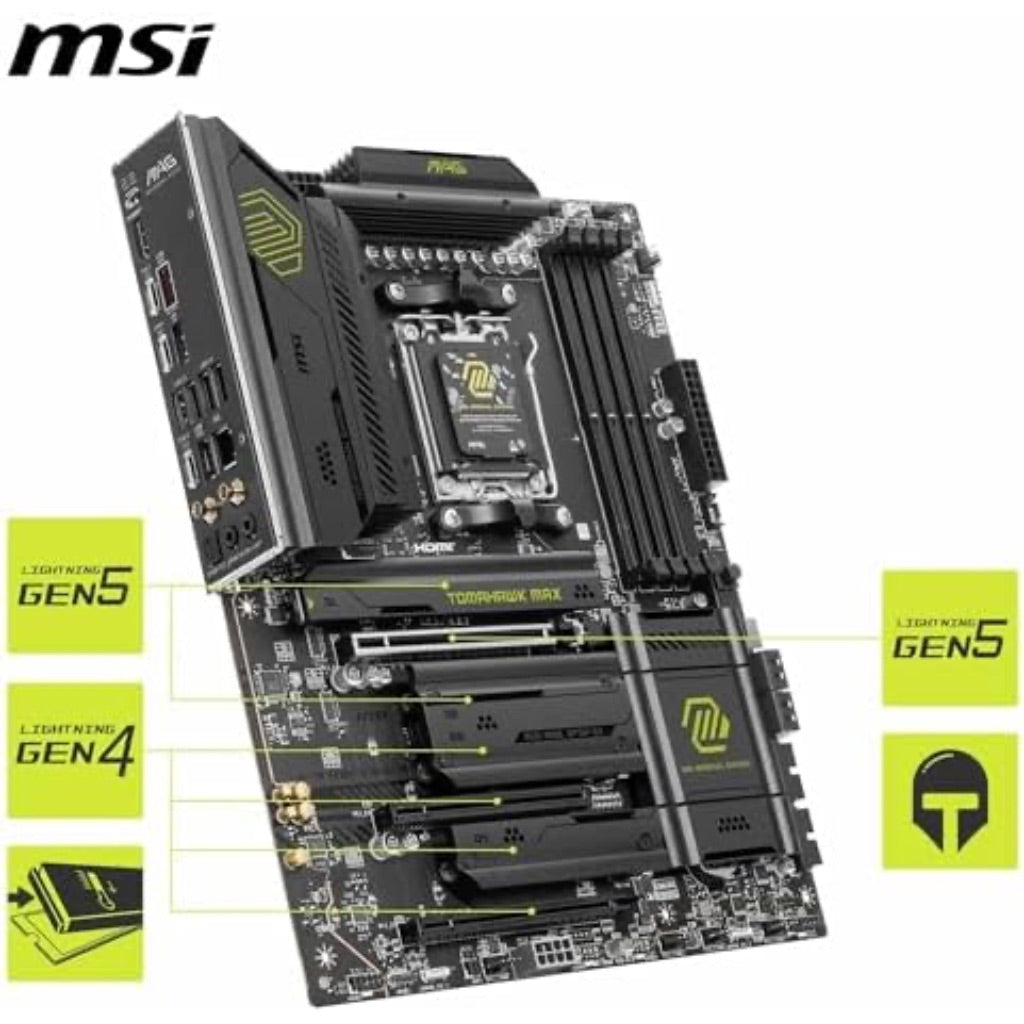

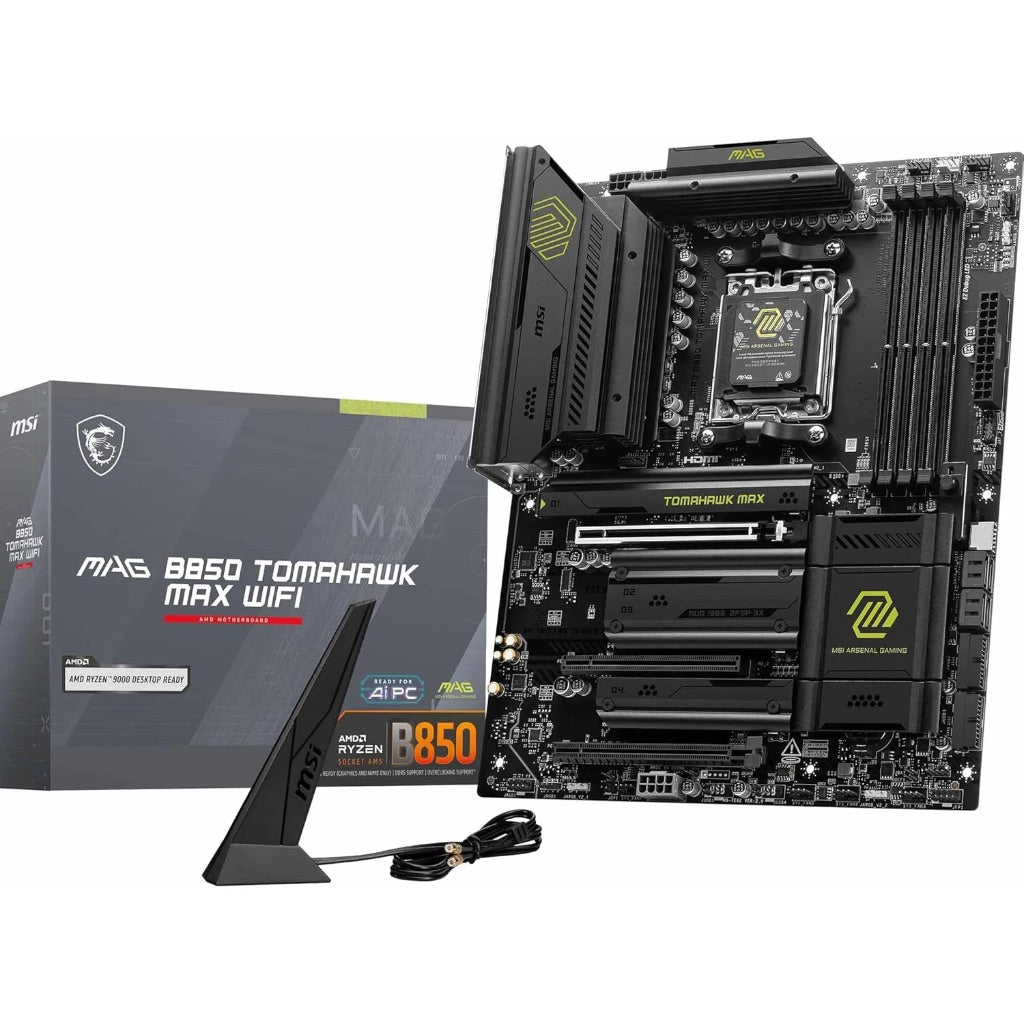

The MSI MAG B850 Tomahawk MAX WiFi V1 is a high-performance ATX motherboard designed for the AMD AM5 socket, supporting the latest AMD Ryzen 9000, 8000, and 7000 series processors. It features a robust 14+2+1 Duet Rail Power System (80A SPS) VRM with Core Boost architecture to deliver stable power for demanding workloads and overclocking. Premium thermal management includes 7W/mK MOSFET thermal pads, extra choke thermal pads, an extended heatsink, a dedicated chipset heatsink, and the EZ M.2 Shield Frozr II to prevent thermal throttling. The board supports high-speed DDR5 memory with four DIMM slots capable of overclocking speeds exceeding 8400+ MT/s (1DPC 1R). For expansion, it provides one PCIe 5.0 x16 slot reinforced with Steel Armor II for next-generation graphics cards. Storage is handled by four M.2 slots: two Gen5 x4 (128 Gbps), one Gen4 x4 (64 Gbps), and one Gen4 x2 (32 Gbps), with EZ M.2 Clip II for easy installation. Connectivity is comprehensive, featuring Wi-Fi 7 and Bluetooth 5.4, a 5 Gbps LAN port, a rear USB 20G Type-C port, and 7.1 channel high-definition audio powered by Audio Boost 5 technology with S/PDIF output support. Additional features include a combo-fan header (3A) for pump and system cooling.
