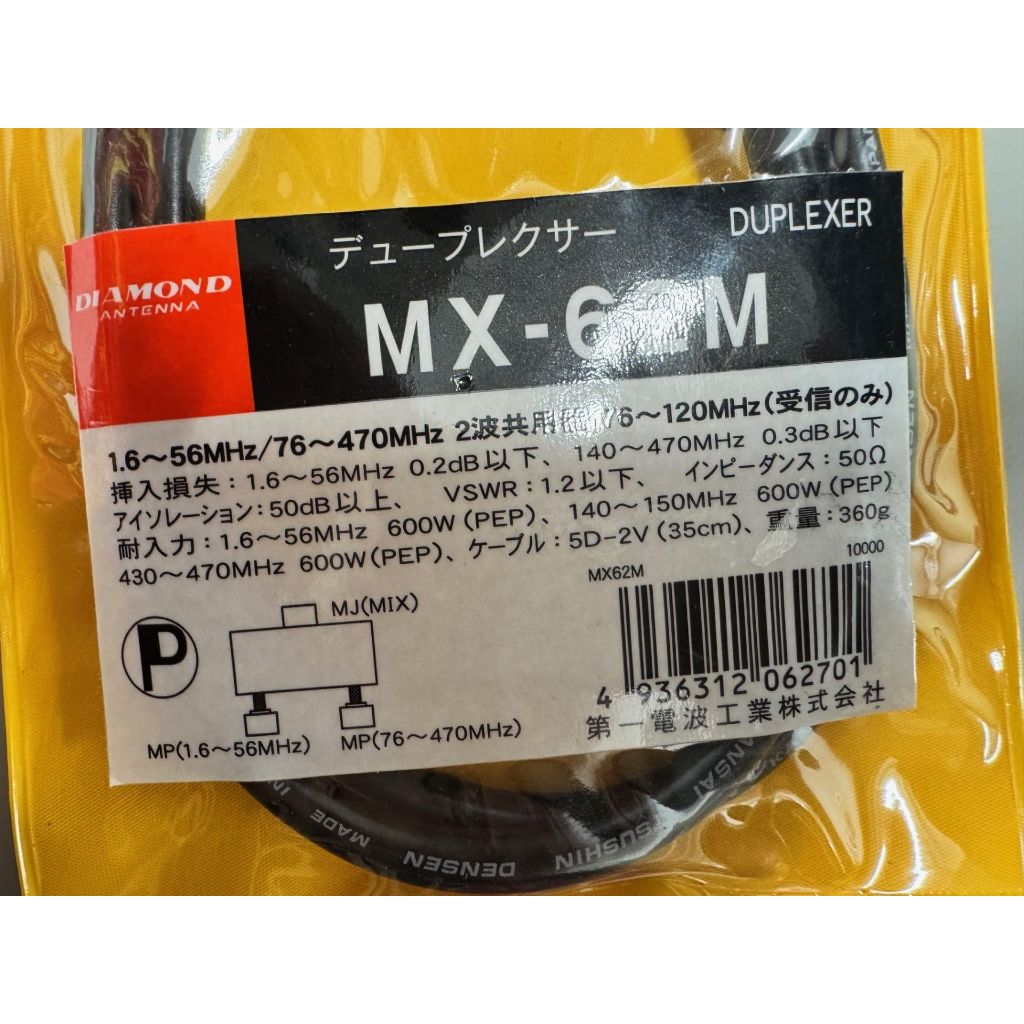

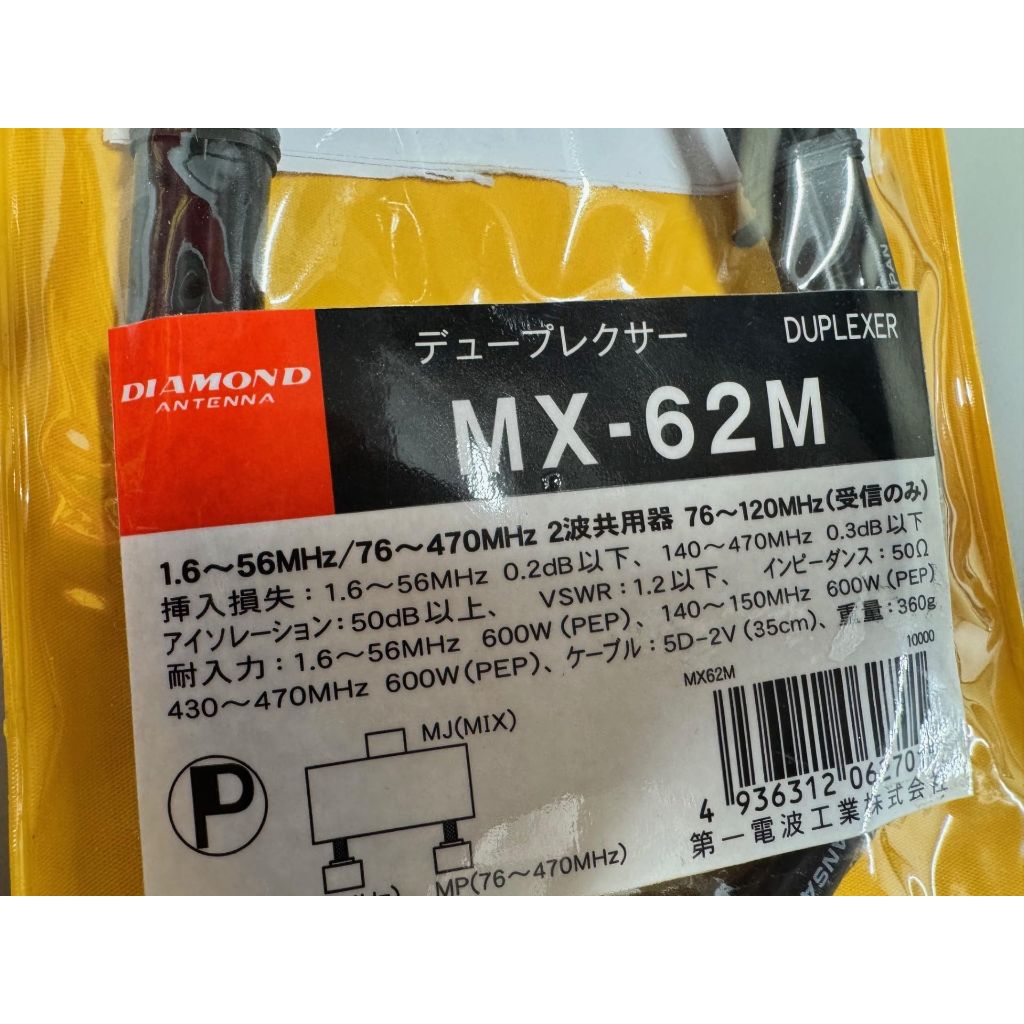

Diamond Antenna MX-62M Duplexer – HF (1.6-56MHz) / VHF/UHF (76-470MHz) 600W PEP, 50Ω Splitter/Combiner, SO-239 / PL-259 Leads

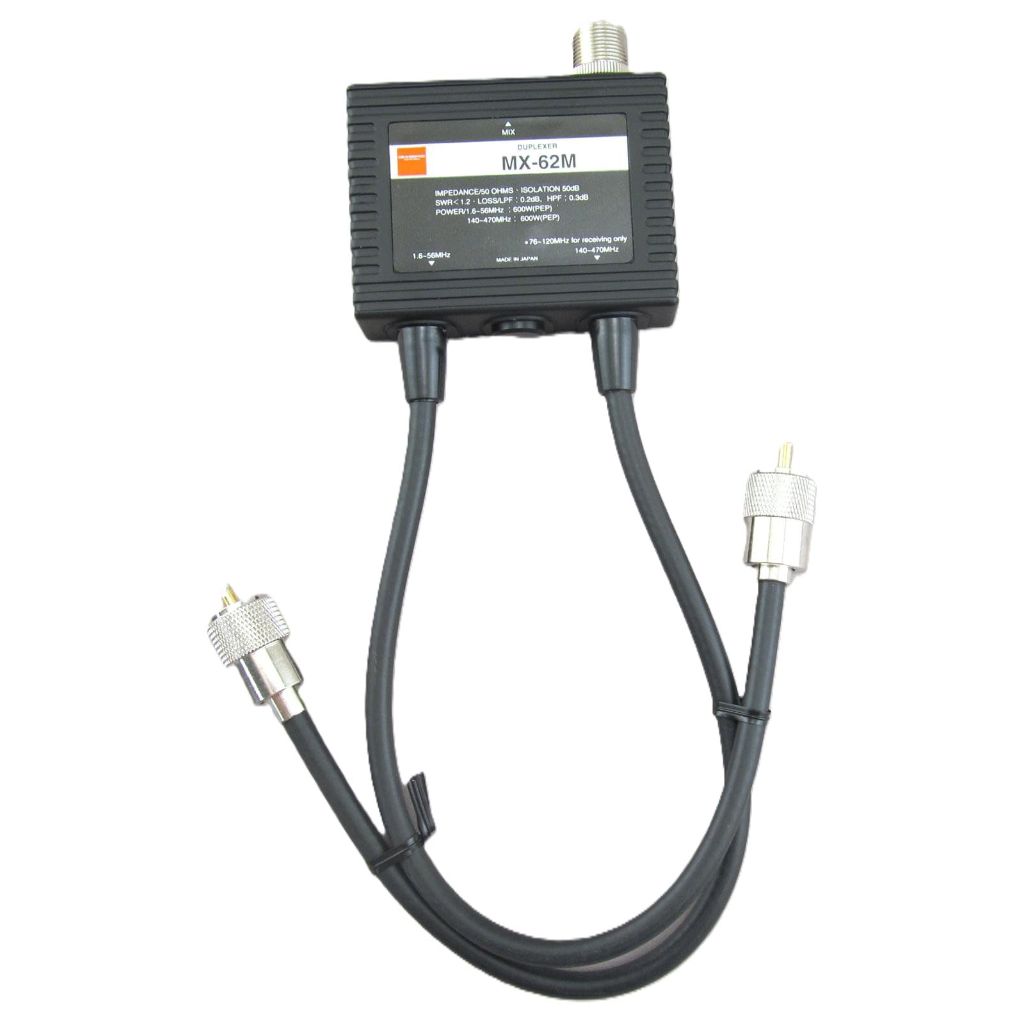

The Diamond MX-62M is a duplexer designed for radio communication systems, operating as a splitter/combiner. It separates or combines signals between the HF band (1.6-56 MHz) and the VHF/UHF band (76-470 MHz). The device is constructed with an SO-239 connector on the mixing port and PL-259 leads on the input ports, featuring a 50-ohm impedance. It is rated for a maximum power handling of 600 watts PEP. Key performance specifications include an insertion loss of approximately 0.2 dB on the low-pass filter side and 0.3 dB on the high-pass filter side, with isolation of approximately 50 dB between ports. This model is intended for use by amateur radio operators to combine multiple radios to a single antenna or to split a single antenna feed for use with multiple radios covering these frequency ranges.
