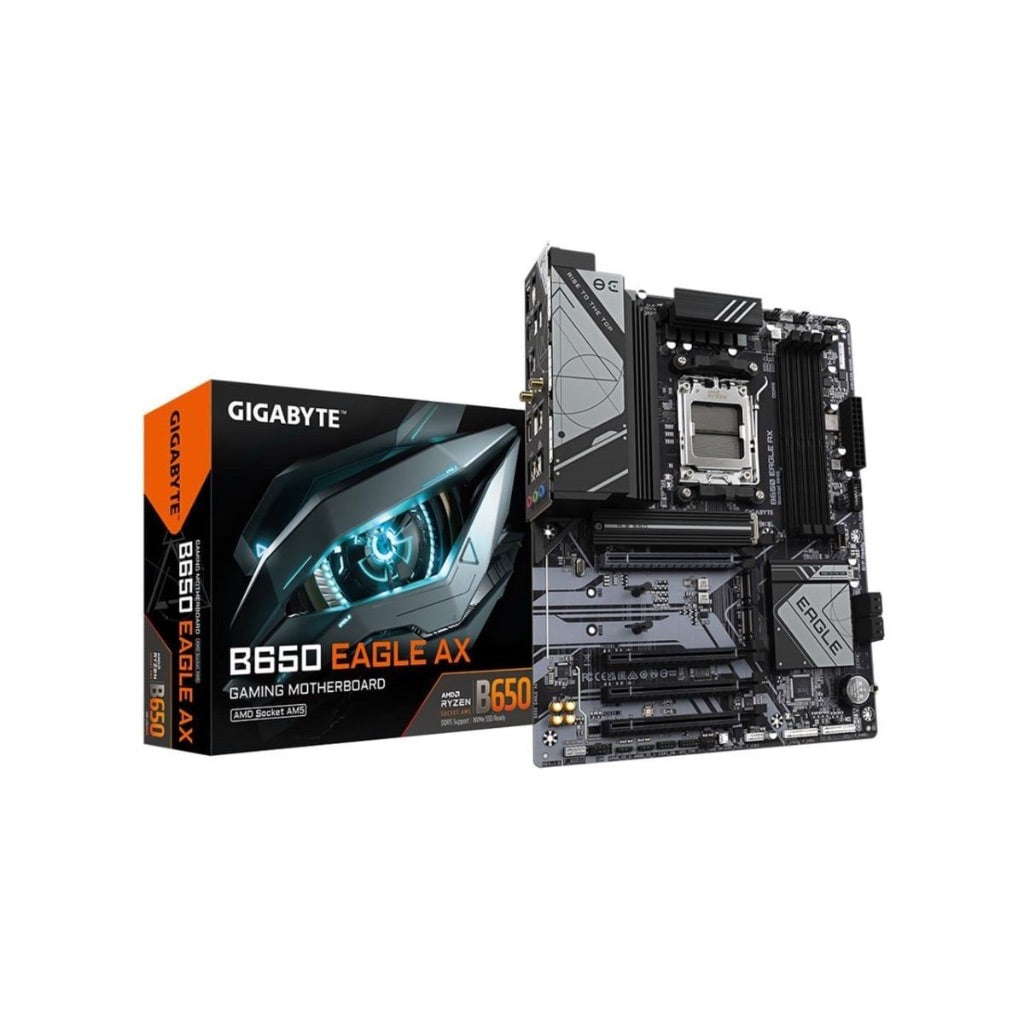

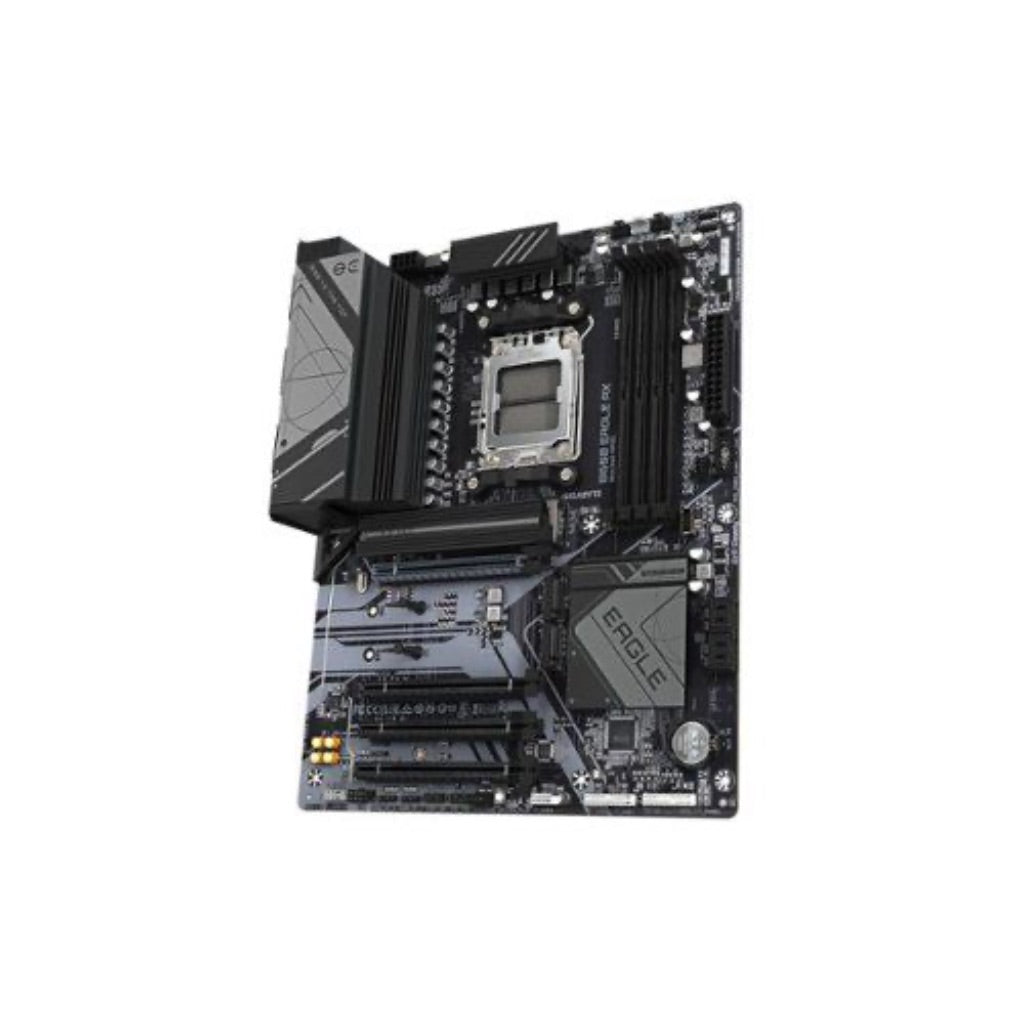

GIGABYTE - B650 EAGLE AX (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black

The GIGABYTE B650 EAGLE AX is an ATX motherboard designed for AMD's AM5 socket platform. Built around the AMD B650 chipset, it supports the latest Ryzen 7000 series and future AM5 processors. It features four dual-channel DDR5 DIMM slots capable of supporting memory speeds up to 7600 MHz and a maximum capacity of 192GB. For storage, the motherboard provides four SATA III ports and two M.2 slots for NVMe SSDs. Expansion options include one PCIe 4.0 x16 slot for a primary graphics card and three PCIe 3.0 x16 slots (electrically x1) for additional cards. Connectivity is comprehensive, featuring USB 2.0, USB 3.2 Gen 1, and USB 3.2 Gen 2 ports. It is equipped with Wi-Fi 6E and Bluetooth 5.3 for advanced wireless networking, along with a 1 Gigabit Ethernet port for wired connections. The board includes two external Wi-Fi antennas for optimal signal reception. Its black PCB and ATX form factor make it suitable for standard PC cases.
